IVECO Eurocargo. Sandwich Power Take Off.

Power take-offs are used to operate devices for bodies such as gully emptier, snow plough, fire fighting and waste collection. IVECO Eurocargo always offers as option on its manual, automated transmissions robust and reliable solutions for this type of mission. IVECO recently implemented a new family of high torque sandwich power take-offs.

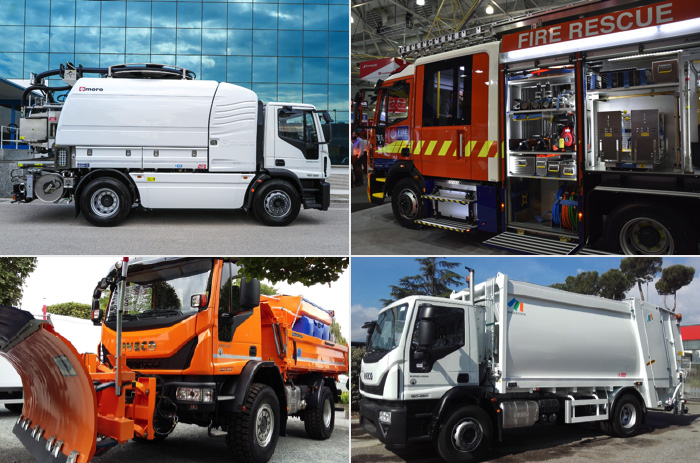

Applications

  • fire-fighting (including pump & roll function)
  • refrigerator (cooler) vehicle
  • concrete mixer
  • sewer cleaner
  • snowplough

Supplier

Manufactured by Interpump Hydraulics (Ex Hydrocar, Sector Leader Company that historically supplies these products to IVECO).

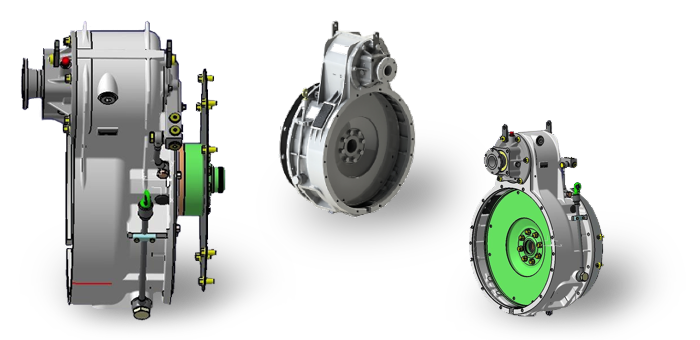

View

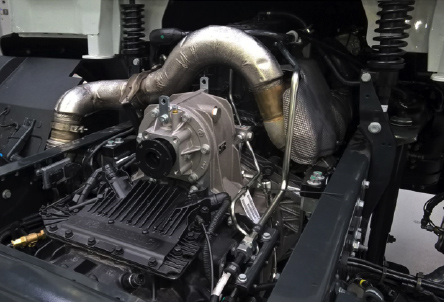

Installation

Availability

On all Euro III ,VI 6 cylinders (220-240-250-280 hp) 120E – 190EL ton models with Manual (ZF 6 or 9 speed) Automated (Eurotronic 6 speed).

Technical data and advantages

  • Engine dependent P.T.O.
  • PTO usage both with standing still vehicles as well as in mobile conditions (pump and roll)
  • PTO clutch engagement limit conditions:
    • 1000 r.p.m. / 1000 Nm / 105 kW
    • 1500 r.p.m. / 670 Nm / 105 kW
    • 2000 r.p.m. / 500 Nm / 105 kW
  • PTO Torque:
    • R = 1:1,02: Output Torque: 1000 Nm (suitable for applications with hydraulics pump)
    • R = 1:1,27: Output Torque: 820 Nm (suitable for applications with compressor)
    • R = 1:1,52: Output Torque: 720 Nm (suitable for firefighting applications)
  • Flange Connection (DIN 100): the Pump Connection (ISO 4 bolts) can be obtained by removing the flange
  • PTO output engagement control, hot-shift (clutch), constant drive and pneumatic shifting (engine off)
  • No residual clutch drag (active brake function always present)
  • Rotation direction : AS ENGINE (anticlockwise viewed from the rear)

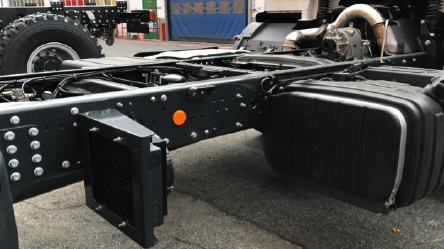

  • External cooling system as standard (mounted directly on the frame):
    • Oil/air type
    • Standard installation on the right side of the frame

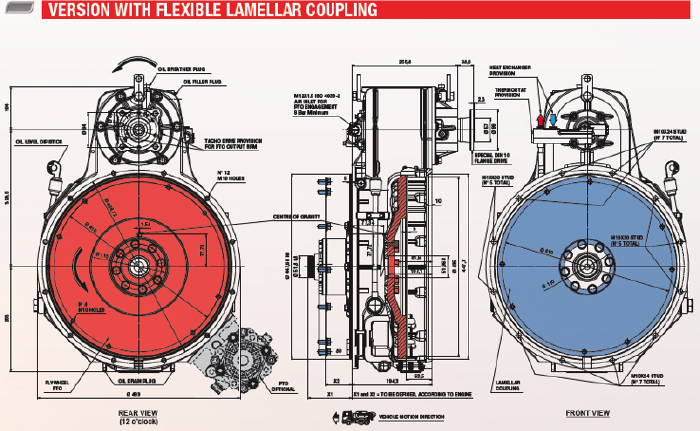

Position

    H12 POSITIONING:
  • Option CCM 74771 PTO Hydrocar Ratio=1,02 Flange Connection
  • Option CCM 74814 PTO Hydrocar Ratio=1,27 Flange Connection
  • Option CCM 74784 PTO Hydrocar Ratio=1,52 Flange Connection
    +30° POSITIONING:
  • Option CCM 74834 PTO Hydrocar Ratio=1,52 Flange Connection, positioning + 30°
    +30° POSITIONING:
  • Option CCM 74834 PTO Hydrocar Ratio=1,52 Flange Connection, positioning + 30°

Ordering codes

Brescia RNP CCM handling

H12 POSITIONING:

  • CCM 74771 PTO Hydrocar Ratio=1,02 Flange Connection
  • CCM 74814 PTO Hydrocar Ratio=1,27 Flange Connection
  • CCM 74784 PTO Hydrocar Ratio=1,52 Flange Connection

+30° POSITIONING:

  • • CCM 74834 PTO Hydrocar Ratio=1,52 Flange Connection, positioning + 30°
