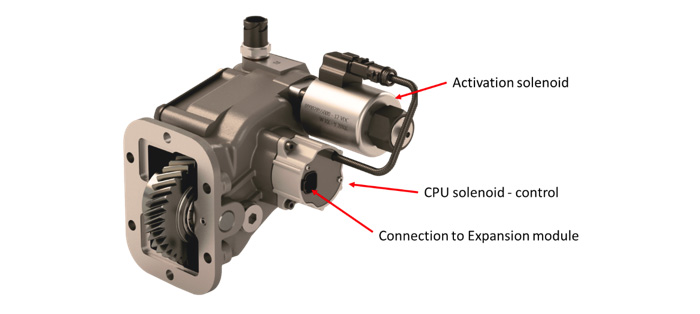

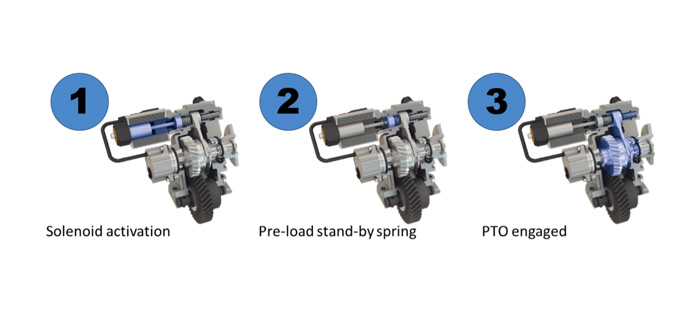

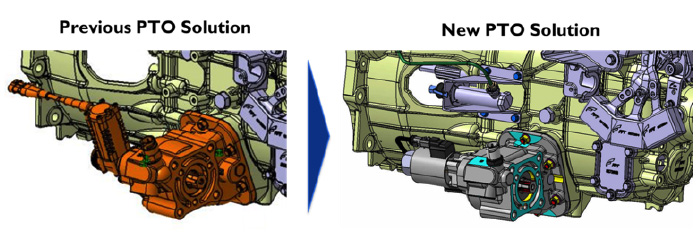

Manufactured by Interpump Hydraulics (Ex Hydrocar, Sector Leader Company that historically supplies these products to IVECO), these electromagnetically controlled power take-offs differ from traditional, electrohydraulic power take-offs, for the socket implementation technology that now no longer uses sliding electrical contacts, main cause of wear and therefore damage to mechanical parts. The activation and deactivation command takes place in fact magnetically, without contact. This result is made possible by using a solenoid which, when properly excited, generates an electromagnetic force which acts on the mechanical members.
Couple transmissible.
Moteur | Puissance (ch) | Boîte de vitesses | Nouveau modèle de PDF électromagnétique | PDF en option | Couple PDF | Rapport PDF |
F1A | 120, 140, 160 | 2835.6 | 2511 | 72815 | 180 Nm | 1,00 |
F1C | 150, 180 | 2840.6 | 2512 | 72816 | 180 Nm | 1,08 |
Les codes options changent comme indiqué dans le tableau. Ces nouvelles PDF remplacent les précédentes, qui ne peuvent plus être commandées.
En option | Description | Applications | Remarques |
5439 | Sans PDF * | | |
75977 | Fourniture de PDF | F1A 2,3 L avec transmission manuelle 2835,6 | Pour PDF fournie par le carrossier lui-même |
72815 | Nouvelle PDF électromagnétique 2511 | F1A 2,3 L avec transmission manuelle 2835,6 | Remplacement 75077 en option |
72816 | Nouvelle PDF électromagnétique 2512 | F1C 3 L avec transmission manuelle 2840,6 | Remplacement 75076 en option |
(*) PDF = Prise de force |
